Construct a Cartesian tree from an inorder traversal
Write an efficient algorithm to construct a Cartesian tree from inorder traversal. A Cartesian tree is a binary tree with the heap property: the parent of any node has a smaller value than the node itself.

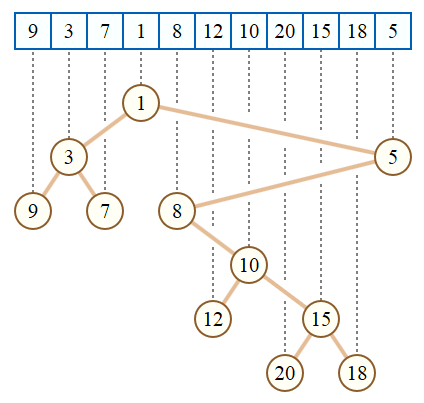

For example, the following figure shows an example of a Cartesian tree derived from the sequence of numbers in inorder order:
Based on the heap property, the Cartesian tree root is the smallest number of the inorder sequence. The idea is to find the minimum element index in the inorder sequence and construct the root node from it. The left subtree consists of the values earlier than the root in the inorder sequence, while the right subtree consists of the values later than the root. Recursively follow this pattern for all nodes in the tree to construct the complete Cartesian tree.
Following is the implementation of the above algorithm in C++, Java, and Python:
C++
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 |
#include <iostream> #include <vector> using namespace std; // Cartesian Tree Node struct Node { int data; Node *left, *right; Node(int data) { this->data = data; this->left = this->right = nullptr; } }; // Recursive function to perform inorder traversal on a Cartesian tree void inorderTraversal(Node* root) { if (root == nullptr) { return; } inorderTraversal(root->left); cout << root->data << ' '; inorderTraversal(root->right); } // Function to find the minimum element index in sequence represented by // `inorder[start, end]` int findMinElementIndex(vector<int> const &inorder, int start, int end) { int minIndex = start; for (int i = start + 1; i <= end; i++) { if (inorder[minIndex] > inorder[i]) { minIndex = i; } } return minIndex; } // Recursive function to construct a Cartesian tree from a given inorder sequence Node* constructTree(vector<int> const &inorder, int start, int end) { // base case if (start > end) { return nullptr; } // Find the index of the minimum element in sequence `inorder[start, end]` int index = findMinElementIndex(inorder, start, end); // The minimum element in a given range of inorder sequence becomes the root Node* root = new Node(inorder[index]); // recursively construct the left subtree root->left = constructTree(inorder, start, index - 1); // recursively construct the right subtree root->right = constructTree(inorder, index + 1, end); // return the current node return root; } int main() { // input sequence of numbers representing the inorder sequence vector<int> inorder = { 9, 3, 7, 1, 8, 12, 10, 20, 15, 18, 5 }; // construct the Cartesian tree Node* root = constructTree(inorder, 0, inorder.size() - 1); // print the Cartesian tree cout << "Inorder traversal of the constructed Cartesian tree is "; inorderTraversal(root); return 0; } |
Output:
Inorder traversal of the constructed Cartesian tree is 9 3 7 1 8 12 10 20 15 18 5
Java
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 |
// Cartesian Tree Node class Node { int data; Node left = null, right = null; Node(int data) { this.data = data; } } class Main { // Recursive function to perform inorder traversal on a Cartesian tree public static void inorderTraversal(Node root) { if (root == null) { return; } inorderTraversal(root.left); System.out.print(root.data + " "); inorderTraversal(root.right); } // Function to find the minimum element index in sequence represented by // `inorder[start, end]` public static int findMinElementIndex(int[] inorder, int start, int end) { int minIndex = start; for (int i = start + 1; i <= end; i++) { if (inorder[minIndex] > inorder[i]) { minIndex = i; } } return minIndex; } // Recursive function to construct a Cartesian tree from a given inorder sequence public static Node constructTree(int[] inorder, int start, int end) { // base case if (start > end) { return null; } // Find the index of the minimum element in sequence `inorder[start, end]` int index = findMinElementIndex(inorder, start, end); // The minimum element in a given range of inorder sequence becomes the root Node root = new Node(inorder[index]); // recursively construct the left subtree root.left = constructTree(inorder, start, index - 1); // recursively construct the right subtree root.right = constructTree(inorder, index + 1, end); // return the current node return root; } public static void main(String[] args) { // input sequence of numbers representing the inorder sequence int[] inorder = { 9, 3, 7, 1, 8, 12, 10, 20, 15, 18, 5 }; // construct the Cartesian tree Node root = constructTree(inorder, 0, inorder.length - 1); // print the Cartesian tree System.out.print("Inorder traversal of the constructed Cartesian tree is "); inorderTraversal(root); } } |
Output:
Inorder traversal of the constructed Cartesian tree is 9 3 7 1 8 12 10 20 15 18 5
Python
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 |
# Cartesian Tree Node class Node: def __init__(self, data, left=None, right=None): self.data = data self.left = left self.right = right # Recursive function to perform inorder traversal on a Cartesian tree def inorderTraversal(root): if root is None: return inorderTraversal(root.left) print(root.data, end=' ') inorderTraversal(root.right) # Function to find the minimum element index in sequence represented by # `inorder[start, end]` def findMinElementIndex(inorder, start, end): minIndex = start for i in range(start + 1, end + 1): if inorder[minIndex] > inorder[i]: minIndex = i return minIndex # Recursive function to construct a Cartesian tree from a given inorder sequence def constructTree(inorder, start, end): # base case if start > end: return None # Find the index of the minimum element in sequence `inorder[start, end]` index = findMinElementIndex(inorder, start, end) # The minimum element in a given range of inorder sequence becomes the root root = Node(inorder[index]) # recursively construct the left subtree root.left = constructTree(inorder, start, index - 1) # recursively construct the right subtree root.right = constructTree(inorder, index + 1, end) # return the current node return root if __name__ == '__main__': # input sequence of numbers representing the inorder sequence inorder = [9, 3, 7, 1, 8, 12, 10, 20, 15, 18, 5] # construct the Cartesian tree root = constructTree(inorder, 0, len(inorder) - 1) # print the Cartesian tree print('Inorder traversal of the constructed Cartesian tree is ', end='') inorderTraversal(root) |
Output:
Inorder traversal of the constructed Cartesian tree is 9 3 7 1 8 12 10 20 15 18 5
The time complexity of the above solution is O(n2), where n is the total number of nodes in the Cartesian tree. The auxiliary space required by the program is O(h) for the call stack, where h is the height of the tree.
Construct a binary tree from inorder and level order sequence
Construct a binary tree from inorder and postorder traversals
